LVC-0810
Video Conferencing System with 8-inch Console
Features:
- Powerful ARM-Based SoC
- 8-Inch Touch Console
- 8M Cameras x4 for 360° Imaging
- Directional Microphones for Beam Forming & Noise Cancellation.
- Swivel ± 180 degree for Different User
- Title 0-45 degree for Better view angle
- Versatile I/Os
- 60W USB-C 3.0 PD-Out
3Specification
| Computing System | |
| OS | Android 13 |
| SoC |
MediaTek MT8390 Octa-core • ARM Cortex – A78 (2.2 GHz) x2 • ARM Cortex – A55 (2.0 GHz) x6 |
| GPU | Mali-G57 |
| APU |
4 TOPS • MediaTek DLA + VP6 • MediaTek NeuroPilot SDK • INT8, INT16 + FP16 Capable |
| Memory | 4GB LPDDR4X |
| Storage | 32GB eMMC |
| Display | |
| LCD Size | 8 Inch |
| Resolution | 1280 x 800 |
| Brightness | >350 Nits |
| Interface | MIPI |
| Rotation | ± 180 degree |
| Tilt | 0-45 degree |
| Touch | PCAP Multi-Touch |
| Interface | I²C |
| Surface | Anti-Smudge, Anti-Gare |
| Video Capturing | |
| Camera | 8M Pixels Camera x4 (with Grid, Wide Angle, Banners Mode) |
| I/8 | |
| USB 3.0 | UVC 8M, PD-out 60W, Alt DP x1 |
| USB 3.0 | UVC 8M, PD-out 4.5W x1 |
| USB 2.0 | Type-A x1 (Optional, for External Webcam) |
| Micro USB OTG | ADB x1 |
| HDMI In | 4K@30Hz x1 |
| HDMI Out | 4K@60Hz x1 |
| LAN | PoE++, 71W x1 |
| DC Jack | 20V Input x1 |
| Wireless Connectivity | |
| Wi-Fi | M.2 E Key Module for Wi-Fi 6(Optional) |
| Bluetooth | M.2 Module for BT (Optional) |
| Audio | |
| Microphone | Microphone Array |
| Speaker | 5W x1 |
| Control | |
| Buttons | Mute, Volume Up, Volume Down, Camera Mode switch, Screen On/Off |
| Light Bar | |
| LED Light Bar | 16.7M color(R/G/B) |
| Watchdog | |
| Hardware Watchdog | x1 |
| Sensor | |
| Proximity Sensor | x1 |
| Ambient Light Sensor | x1 |
| Power Adaptor | |
| Input | 100-240V, 50-60Hz, |
| Output | 20V, 6A Max |
| Security / Privacy | |
| Kensington Lock | x1 |
| Magnetic Privacy Cap for Cameras | x1 |
| Environmental | |
| Operating Temperature | 0 – 40°C |
| Storage Temperature | -20 – 60°C |
| Shock | IEC 60068-2-27 Table A.1 (Railway) |
| Vibration | 1.5G @ 5-200Hz, Random |
| System Certification | FCC/CE |
| Dimensions | |
| Dimension | 339(H) x 200(W) x 155(D) |

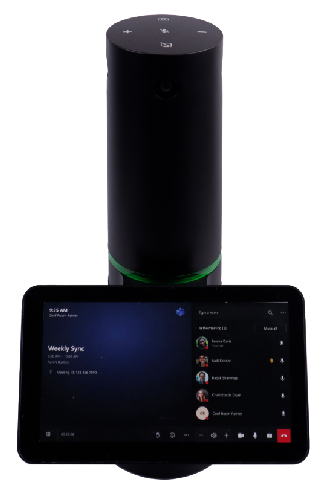

Product Images
