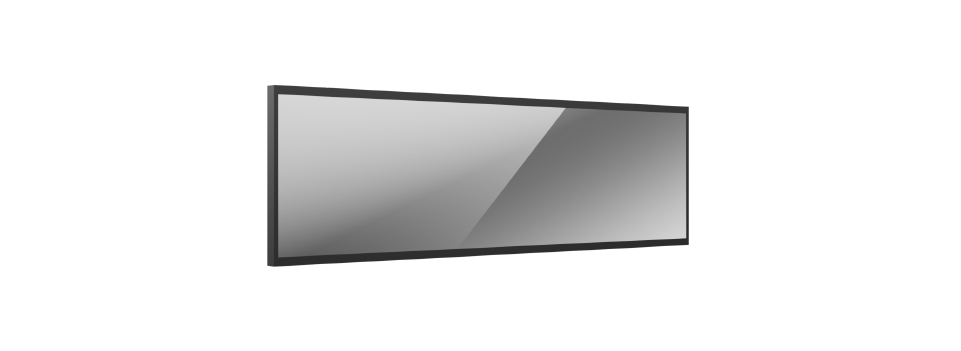

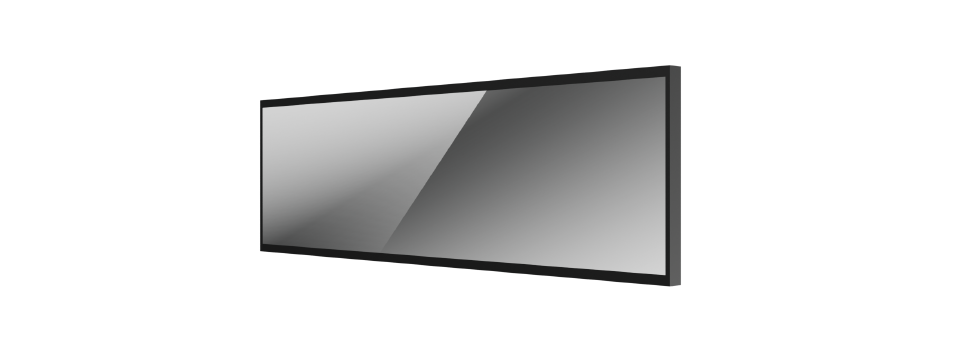

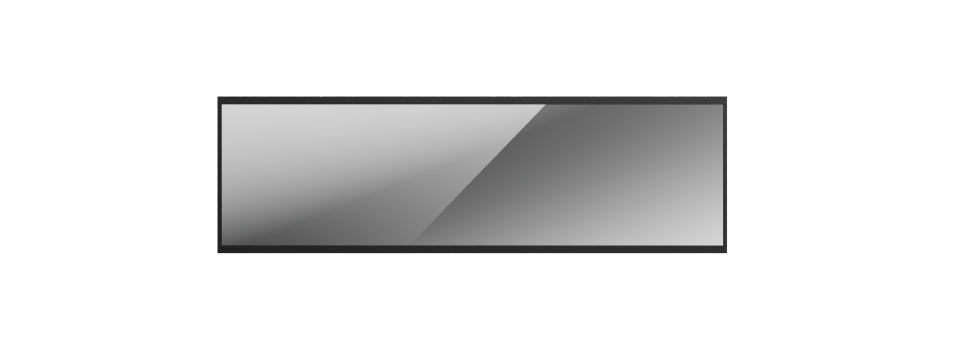

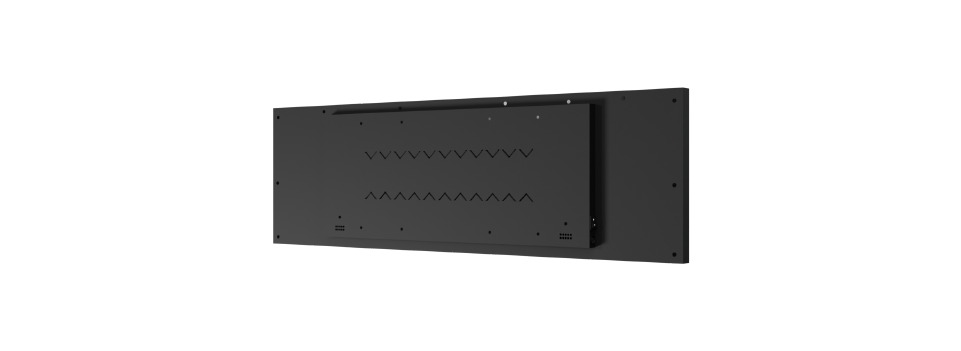

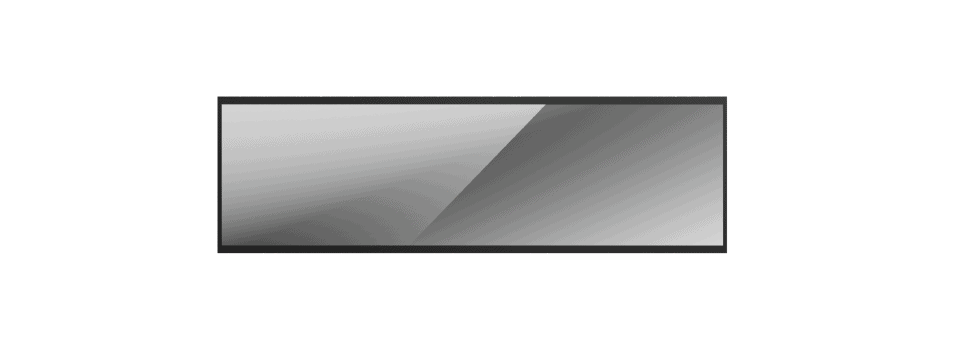

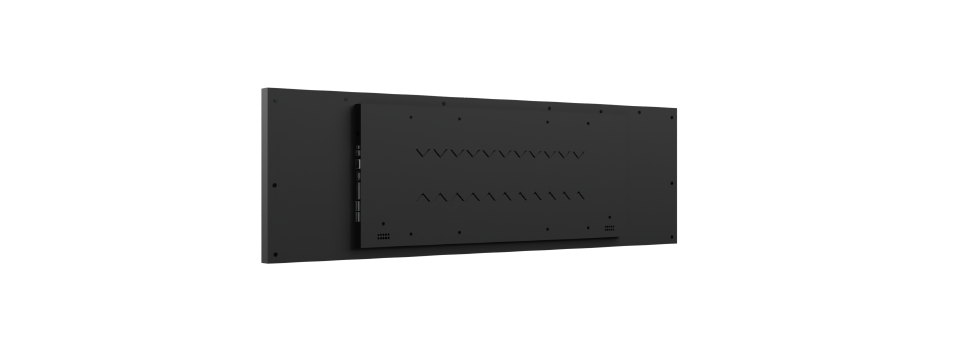

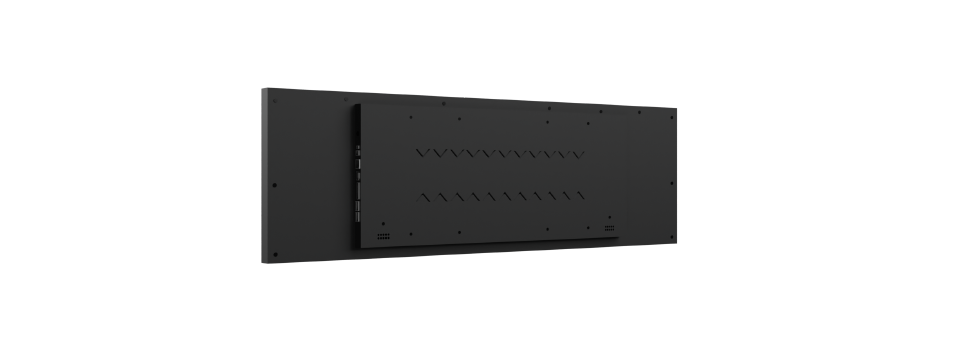

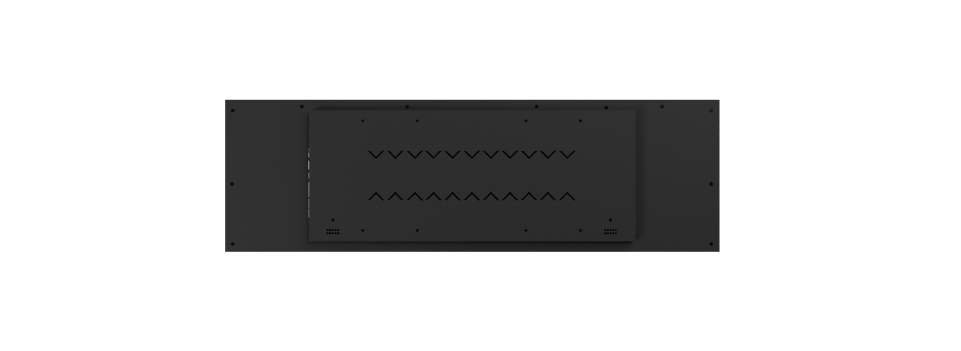

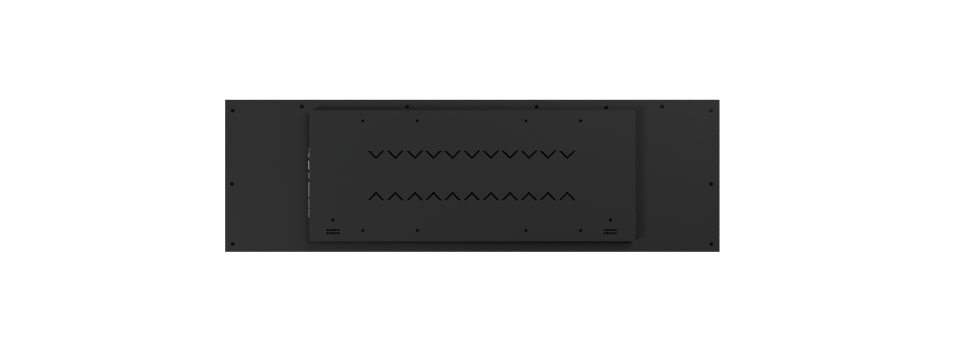

Bar Type Panel PC

An all-in-one compact design featuring a powerful ARM-based quad-core CPU. Its ultra-wide screen ratio and high-resolution display make it ideal for various applications, offering a visually immersive experience. With a variety of brightness options, this panel PC ensures optimal visibility in any environment, making it a versatile solution for modern digital spaces.

Bar Type Panel PC

This all-in-one compact design features a powerful ARM-based quad-core CPU. Its ultra-wide screen and high-resolution display offer a visually immersive experience for various applications. With multiple brightness options, this panel PC ensures clear visibility in any environment, making it ideal for modern digital spaces.

Visually Appealing

HD native resolution in ultra-wide aspect ratio, providing excellent visuals for industrial and commercial applications.

Efficient and Reliable

Equipped with an ARM-based quad-core CPU, ample RAM and storage, providing efficient and reliable performance for a variety of industrial and commercial applications.

Efficient and Reliable

Equipped with an ARM-based quad-core CPU, ample RAM and storage, providing efficient and reliable performance for a variety of industrial and commercial applications.

Easy Installation

Mounting compatibility and compact design for easy installation and clean setup.

Robust, Reliable and Powerful Performance

Industrial-grade components for durability and robustness in harsh environments.

Easy to Integrate and Fast Deployment

Easy to integrate with existing systems. Provides a robust and hassle-free user experience

f

Optimal Solution for Industrial and Commercial Use

Suitable for use in both small and medium-sized spaces. Ideal for use in industrial and commercial applications

More Project-winning features for Customization

LV-Tron offers more project-winning features to further enhance our unmatched customization options. Our products are designed to make it easy for you to scale up your business with our one-stop solution that streamlines the entire process and makes it easy to manage.

Device management tools (MDM)

  • Centralized device management with MDM tools
  • Remote monitoring for quick issue troubleshooting and reduced downtime
  • Automatic firmware and software updates for the latest security patches and features

Enhanced Security

  • 802.1X over Ethernet for authorized user access
  • Support for SCEP for easy certificate management and deployment
  • Automatic updates with latest security patches for up-to-date protection against security threats

Powerful APIs

  • Easy integration with software for reduced time and costs
  • Direct hardware control for greater flexibility and customization options
  • Powerful APIs for easier debugging and issue identification

Specification

Computing System
Operating System Android 6.0
CPU Quad-core Cortex-A7
Memory 1GB RAM,
4GB ROM
Storage 8GB ROM
Extra
Diagonal 37″
Panel IPS
Resolution 1920 x 540
Aspect ratio 16:2.4
Brightness 700 Nits
Panel brightness Mini. NTSC 75%
Color gamut(NTSC) 16.7M
Bitrate AG25%
Surface treatment Tempered glass
Cover glass Thickness: 5mm
Interfaces / Connectors / Controls
USB USB Host x5,
USB OTG x1
Audio line out Audio out x1
LAN/ RJ45 LAN Controller:
10/100/1000Mbp
SD Socket
Wi-Fi 802.11 b/g/n
Speaker 5W(8Ω) x2
Mechanical
VESA mounting 400 x 160mm
Front Cover Material Metal
Front Cover Color Black
Back cover Material Metal
Back Cover Color Black
Storage Temperature -20°C ~ 60°C
Operating temperature 0°C ~ 50°C
Storage Humidity 10%~90%, no condense
Operating Humidity 20%~85%, no condense
Power Management
Power supply AC (Power Board)
Power consumption 50W
Dimensions / Weight
Product dimensions 915 x 280 x 43mm
Weight 8.7kg
Computing System
Operating System Android 7.1
CPU Quad-core Cortex-A17
Memory 2GB RAM,
8GB ROM
Storage 8GB ROM
Extra TF card slot x1
Diagonal 28.6″
Panel ADS
Resolution 1920 x 360
Aspect ratio 16:3
Brightness 700 Nits
Panel brightness Mini. NTSC 75%
Color gamut(NTSC) 16.7M
Bitrate AG25%
Surface treatment Tempered glass
Cover glass Thickness: 2mm
Interfaces / Connectors / Controls
USB USB Host x1,
USB OTG x1
Audio line out Audio out x1
LAN/ RJ45 LAN Controller:
10/100/1000Mbp
SD Socket TF Card x1
Wi-Fi 802.11 b/g/n/ac/ax
Speaker 5W(8Ω) x2
Mechanical
VESA mounting 400 x 160mm
Front Cover Material Metal
Front Cover Color Black
Back cover Material Metal
Back Cover Color Black
Storage Temperature -10°C ~ 60°C
Operating temperature 0°C ~ 50°C
Storage Humidity 10%~90%, no condense
Operating Humidity 20%~85%, no condense
Power Management
Power supply AC(12V1.5A) Adapter
Power consumption 40W
Dimensions / Weight
Product dimensions 732 x 231 x 48mm
Weight 5kg
Computing System
Operating System Android 7.1
CPU Quad-core Cortex-A7
Memory 1GB RAM,
8GB ROM
Storage 8GB ROM
Extra TF card slot x1
Diagonal 19″
Panel ADS
Resolution 1920 x 360
Aspect ratio 16:3
Brightness 300 Nits
Panel brightness Type. NTSC 72%
Color gamut(NTSC) 16.7M
Bitrate AG25%
Surface treatment Tempered glass
Cover glass Thickness: 2mm
Interfaces / Connectors / Controls
USB USB Host x1,
USB OTG x1
Audio line out Audio out x1
LAN/ RJ45 LAN Controller:
10/100/1000Mbp
SD Socket TF Card x1
Wi-Fi 802.11 b/g/n/ac/ax
Speaker 5W(8Ω) x2
Mechanical
VESA mounting 100 x 75mm
Front Cover Material Metal
Front Cover Color Black
Back cover Material Metal
Back Cover Color Black
Storage Temperature -10°C ~ 60°C
Operating temperature 0°C ~ 50°C
Storage Humidity 10%~90%, no condense
Operating Humidity 20%~85%, no condense
Power Management
Power supply AC(12V1.5A) Adapter
Power consumption 20W
Dimensions / Weight
Product dimensions 495 x 115 x 33mm
Weight 1.8kg
