LVE-8650
Top-Performance Media Player
Features:
- Powerful ARM-Based SoC
- Multiple OSs Supported
- Picture In Picture Supported
- Dual Decoding Up to 4K
- Support M.2 Wireless Module
- Wide Voltage Support
Specification
| Computing System | |
| OS | Android 13 / Ubunto 22.04 LTS / Yocto |
| CPU | MTK 8390
· Dual-core super cores: ARM Cortex-A78 · Hexa-core efficiency cores: ARM Cortex-A55 |
| GPU | Integrated Mali-G57 GPU
· Video decoding up to 4K 75fps · Dual decoding up to one 4K and one 2K · Video encoding up to 4K 30fps with HEVC · Support AV1/H.265/H.264 CODEC · Support OpenGL/CL/Vulkan |
| Memory | 4GB LPDDR4, Max 8G |
| Storage | 32GB eMMC, Max 64G |
| Extra | Micro SD 3.0 Slot x1, Memory Expandable To 16/32 GB |
| I/O | |
| Gigabit Ethernet Port | x1 |
| USB Type-A 2.0 | x1 |
| USB Type-A 3.0 | x1 |
| Micro USB (ADB) | x1 |
| USB Type-C | x1 |
| HDMI Input | 4K@30Hz x1 |
| HDMI Output | 4K@60Hz x1 |
| Audio Out | 3.5mm Analog Stereo x1 |
| Micro SD Slot | x1 |
| DC Input | x1 |
| Connectivity | |
| Ethernet | IEEE 802.3ab Gigabit Ethernet |
| Wi-Fi | M.2 E Key Module for Wi-Fi 6 |
| BT | M.2 Module for BT |
| Power Adaptor | |
| Input | 100 – 240V, 50 – 60 Hz |
| Output | 12V, 1.6A |
| Certified Power Supply | UL / CB / PSE |
| Power | |
| DC Power Input: | · 12V +/- 10% DC input
· 5V~36V +/- 10% DC Input (Optional) · Energy Star 6.1 · DC Voltage Protection |
| Software Features | |
| APIs | Android 13 / Ubunto 22.04 LTS / Yocto |
| Supported Image Formats | JPEG up to 3840 x 2160 |
| PNG up to 3840 x 2160 | |
| Supported Audio Formats | MP3 up to 320 Kbps |
| Advanced Signage Features | Remote Commissioning |
| AlwaysOn, AppLockto Prevent Unauthorized Access | |
| StrongCache For Continued Playback Even When Network Is Not Available | |
| HTML5 | HTML5 Including CSS and Javascript |
| Widgets for Calendar, Clock, News, and Web Page Integration | |
| WebKit-based Browser Engine | |
| SMIL | W3C SMIL for Cross-platform Management |
| Accessories | |
| Display Output | HDMI Cable x1 |
| Mounting | Velcro x1 |
| Micro SD Card Bracket x1 | |
| M2.5 Screw x4 | |
| Adapter | AC power adapter with interchangeable plug head (US/EU/UK/AUS) |
| Documentation | Quick Start Guide x1 |
| Environmental | |
| Operating Temperature | -0°C – 60°C |
| Storage Temperature | -40 – 85°C |
| Operating Humidity | 20 – 80 % @ 45 °C, Non-condensing |
| Shock | IEC 60068-2-27 Table A.1 (Railway) |
| Vibration | 1.5 G @ 5 – 200Hz, Random |
| System Certification | FCC / CE |
| Dimension | |
| Dimension | 186 (W) x 119(D)x 27.6 (H) mm |

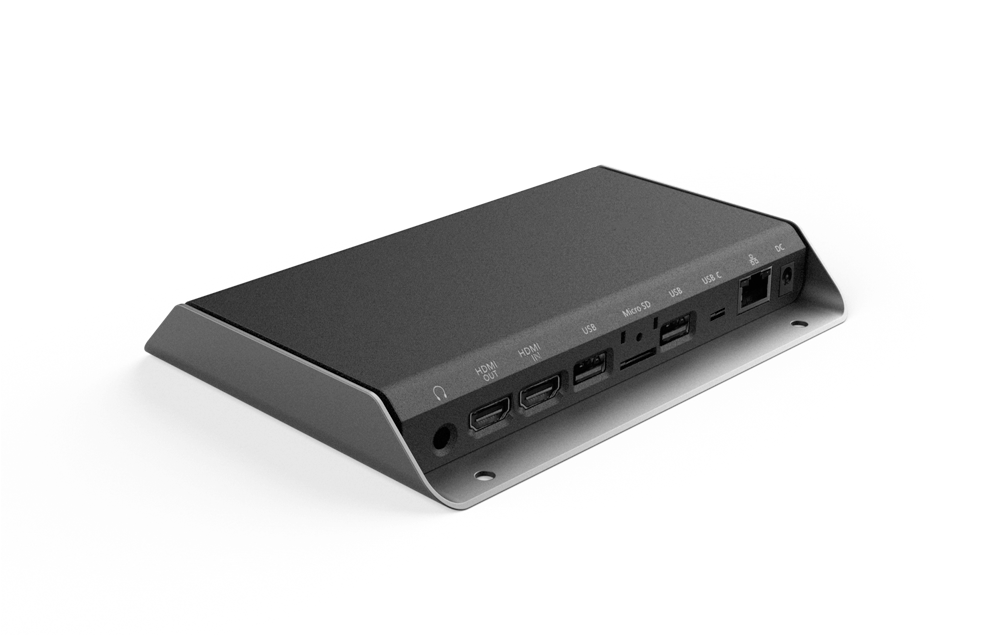

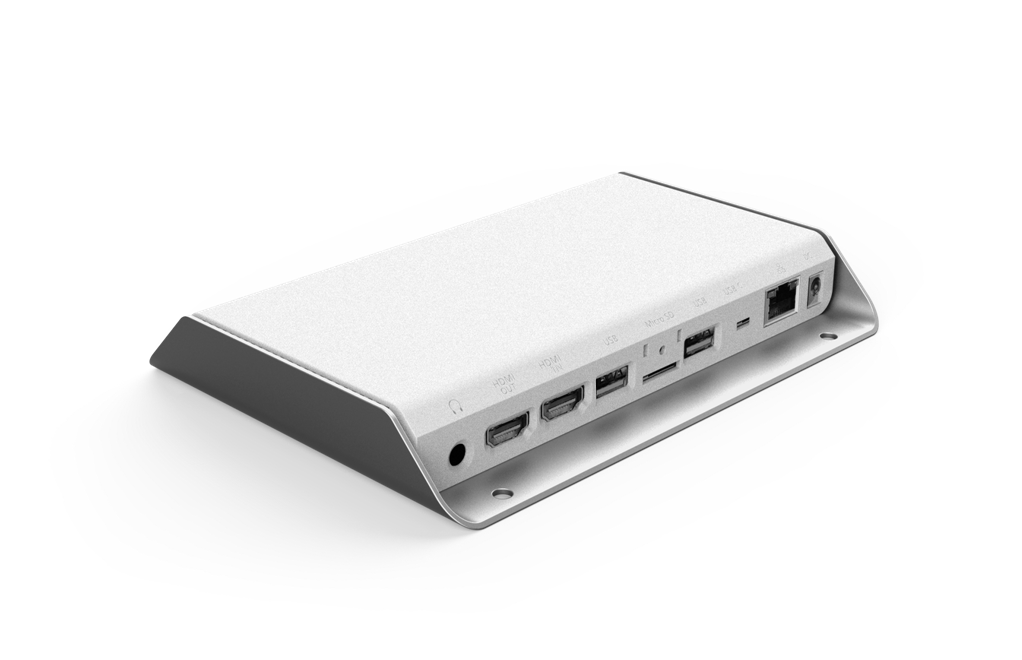

Product Images
