Purpose-Built for Visitor Management & Wayfinding
The LVK-2210-A is a Ready-to-Go Kiosk Solution. Its Intelligent Self-Service Technology provides an efficient and interactive customer experience, making it the ideal turn-key solution for visitor management systems (VMS) and Wayfinding.

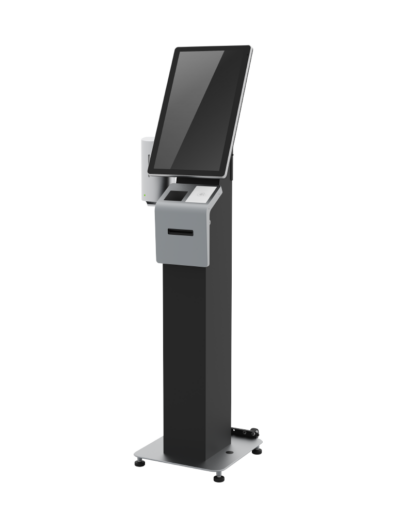

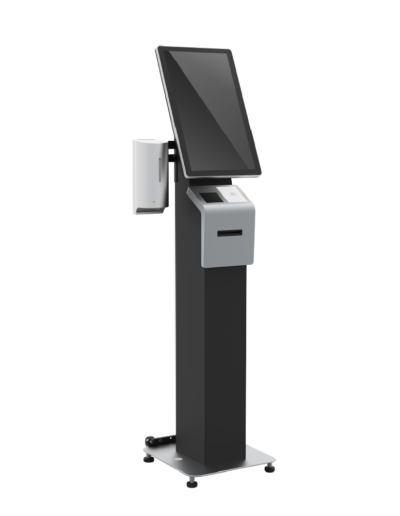

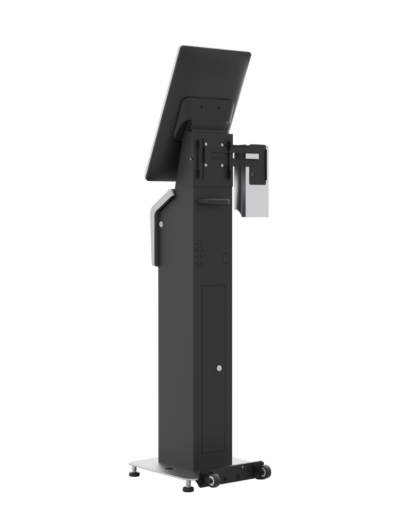

LVK-2210-A / LVK-2210-W
VMS
Wayfinding
Hand Sanitizer Dispenser
QR code scanner
Self-Adhesive/Non-Adhesive Label Printer
Purpose-Built for Visitor Management & Wayfinding
The LVK-2210-A is a Ready-to-Go Kiosk Solution. Its Intelligent Self-Service Technology provides an efficient and interactive customer experience, making it the ideal turn-key solution for visitor management systems (VMS) and Wayfinding.
Robust and Reliable Performance
- Powered by a dual-core Cortex-A72 CPU for powerful performance
- Responsive Touch Panel
- Suitable for a wide range of applications that require high performance and reliability
Easy to Integrate
- Powered by Android 9.0
- Easy to integrate with existing systems
- Provides a robust and hassle-free user experience
Turn-Key Industrial PC Solution
- Reduces time-to-market for new products
- Allows for quick deployment and scalability
- Ready to sell upon installation of software
More Project-winning features for Customization
LV-Tron offers more project-winning features to further enhance our unmatched customization options. Our products are designed to make it easy for you to scale up your business with our one-stop solution that streamlines the entire process and makes it easy to manage.
Device management tools (MDM)
- Centralized device management with MDM tools
- Remote monitoring for quick issue troubleshooting and reduced downtime
- Automatic firmware and software updates for the latest security patches and features
Enhanced Security
- 802.1X over Ethernet for authorized user access
- Support for SCEP for easy certificate management and deployment
- Automatic updates with latest security patches for up-to-date protection against security threats
Powerful APIs
- Easy integration with software for reduced time and costs
- Direct hardware control for greater flexibility and customization options
- Powerful APIs for easier debugging and issue identification
Specification
| Computing System | |
| Operating System | Android 9.0 |
| CPU | Dual-core Cortex-A72 |
| Memory | LDDR4 4GB |
| Storage | 32GB eMMC |
| Extra | Micro SD card slot x1 (up to 128GB) |
| LCD Display | |
| Diagonal | 21.5″ |
| Native resolution | 1920 x 1080 |
| Aspect ratio | 16:09 |
| Panel brightness | 300 Nits |
| Touch | PCAP Touch |
| Display Support | 2 Independent Displays (Main Display + USB or HDMI) |
| Interfaces / Connectors / Controls | |
| HDMI | Output x1 |
| USB | USB 2.0 x5, USB 3.0 OTG x1 |
| Audio line out | Audio out x1 |
| LAN | LAN Controller: 10/100/1000Mbp |
| SD Socket | Micro SD Card x1 |
| Ports | Serial x2, RJ11 x1 |
| Wi-Fi | 802.11 a/b/g/n/ac |
| Bluetooth | BT4.2 |
| Speaker | 3W x1 |
| Mechanical | |
| Spill & Dust Resistant | IP54 Certified |
| Storage Temperature | -20°C ~ 60°C |
| Operating Temperature | 0°C ~ 40°C |
| Operating Humidity | 15%~80% |
| Power Management | |
| Power Adaptor | AC-In 100~240V, DC-Out 12V |
| Power consumption | 90W |
| Accessories | |
| Hand Sanitizer Dispenser | FastDry HK-MSD31, Capacity 800 ml Spray Nozzle 16,000 uses, Power Source 4 x AA Batteries |
| Printer | Self-Adhesive/Non-Adhesive Label Printer |
| Stand | Floor stand |
| Dimensions / Weight | |
| Product dimensions | 1572 x 401 x 381 mm |
| Weight | 47kg |
| Computing System | |
| Operating System | Windows 10 IoT Enterprise (64bit) / Linux (Ubuntu) |
| CPU | Intel® Core™ i3-7100U (KABYLAKE-U) |
| Memory | LDDR4 8GB |
| Storage | M.2 PCIe SSD 256G |
| LCD Display | |
| Diagonal | 21.5″ |
| Native resolution | 1920 x 1080 |
| Aspect ratio | 16:09 |
| Panel brightness | 300 Nits |
| Touch | PCAP Touch |
| Display Support | 3 Independent Displays (Main Display + VGA + HDMI) |
| Interfaces / Connectors / Controls | |
| HDMI | Output x1 |
| VGA | Output x1 |
| USB | USB 3.0 x4 |
| Audio line out | Audio out x1 |
| LAN | LAN Controller: 10/100/1000Mbp x2 |
| Ports | Serial x2, RJ11 x1 |
| Wi-Fi | 802.11 a/b/g/n/ac |
| Bluetooth | BT4.2 |
| Speaker | 3W x1 |
| Mechanical | |
| Spill & Dust Resistant | IP54 Certified |
| Storage Temperature | -20°C ~ 60°C |
| Operating Temperature | 0°C ~ 40°C |
| Operating Humidity | 15%~80% |
| Power Management | |
| Power Adaptor | AC-In 100~240V, DC-Out 12V |
| Power consumption | 90W / 120W |
| Accessories | |
| Hand Sanitizer Dispenser |
FastDry HK-MSD31,Capacity 800 ml Spray Nozzle16,000 uses,Power Source 4 x AABatteries |
| Printer | Self-Adhesive/Non-Adhesive Label Printer |
| Stand | Floor stand |
| Dimensions / Weight | |
| Product dimensions | 1572 x 401 x 381 mm |
| Weight | 47kg |
